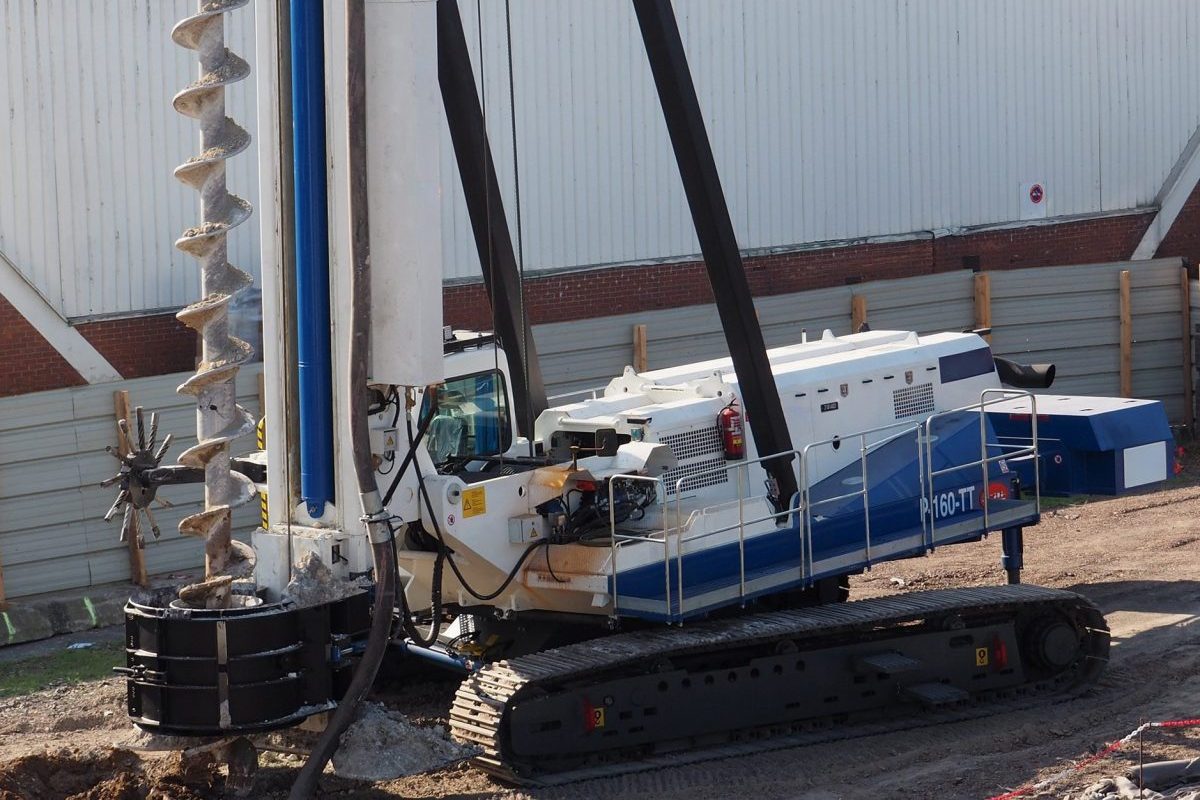

CFA DRILLING RIG
LLAMADA has been manufacturing machinery specialized in foundations for more than 50 years. We offer for the national market, our drilling rigs, depending on their size, have different types of engines: TIER III CAT C7.1 of 205Kw, VOLVO TAD1353VE of 345 Kw or CAT C18 of 571Kw. Engines from manufacturers recognized for their quality, performance and support.
LLAMADA drills can be used in soil conditions such as sands, clays, silts, gravels and soft rocks. We can also install DTH systems to break through hard rock. Low noise and no vibration, making them ideal in built-up areas with weak soil conditions and high groundwater levels.
Model | Main Technical Features of CFA Drilling Rigs | ||||||
Max. Diam. (mm) | Long. Max. CFA (meters) | Work Area | Motor (CV) | Tank (KN) | Pulling Force (Tm) | Shipping Weight (Ton) | |
PK-85TA | 800 | 19 | 360° | 221 | 98 | 6 | 37 |
P-224TA | 1000 | 24 | 360° | 320 | 130 | 15 | 49 |
P-140TA | 1000 | 28 | 360° | 428 | 220 | 20 | 55/65 |
P-227TA | 1200 | 27 | 360° | 551 | 346 | 30 | 60 |
P-230TA | 1200 | 30 | 360° | 543 | 346 | 30 | 71 |
P-160T | 1000/1200 | 35/33 | 220° | 612 | 346 | 30 | 80 |
P-240TA | 1200 | 41 | 250° | 612 | 423 | 30 | 90 |
With our machines we dare to work in terrains where there are rock layers of up to 50 mega pascals and there are projects where by installing the percussion reducer we have even drilled layers of 100 mega pascals.
